◆ MZPS0850(binocular) and MZPS0850T(trinocular)

◆ Parallel optical system, zoom body magnification range : 0.8X~5X

◆ Orthoscopic image, large depth of field, long working distance, available to attach various accessories

◆ Widely used in science research, modern biology, medicine, environment, farming, police, micro-electronics, semiconductors and etc which require high precision


MZPS0850外形尺寸	MZPS0850+SD1外形尺寸

MZPS0850T外形尺寸	MZPS0850T+SD1外形尺寸


MZPS0850	MZPS0850+SD1

MZPS0850T	MZPS0850T+SD1

Zoom driver	Parallel optical system, 0.8X~5X continuous zoom body
Magnification	Standard total magnification: 8X~50X, the max. magnification: 225X.
Eyepiece	High eye point and wide field eyepieces(10X，Φ22mm).
Objective	1X Plane objective
WD	91mm
Interpupillary distance adjustment range (10X eyepiece)	52mm~76mm
Diopter adjustment range	±6 Diopter
Focus range	50mm（Track stand: 100mm）
Binocular eyetubes	Inclined 45°
The holder and the head matching dimension	Φ76mm
Distance between the center of the pole and the center of the holder	140mm
Diameter of the pole	Φ25mm
Diameter of the center working stage	Φ95mm

Eyepiece	Item	Specification of different auxiliary objective
Eyepiece	Item	0.5X	0.7X	1X	1.5X（Auxiliary）
10X	Total Mag.	4X~25X	5.6X~35X	8X~50X	12X~75X
10X	FOV（mm）	Φ55~Φ8.8	Φ39.3~Φ6.3	Φ27.5~Φ4.4	Φ18.33~Φ2.93
15X	Total Mag.	6X~37.5X	8.4X~52.5X	12X~75X	18X~112.5X
15X	FOV（mm）	Φ42.5~Φ6.8	Φ30.36~Φ4.86	Φ21.25~Φ3.4	Φ14.17~Φ2.27
20X	Total Mag.	8X~50X	11.2X~70X	16X~100X	24X~150X
20X	FOV（mm）	Φ35~Φ5.6	Φ25~Φ4	Φ17.5~Φ2.8	Φ11.67~Φ1.87
30X	Total Mag.	12X~75X	16.8X~105X	24X~150X	36X~225X
30X	FOV（mm）	Φ22.5~Φ3.6	Φ16.1~Φ2.57	Φ11.25~Φ1.8	Φ7.5~Φ1.2
WD（mm）		186	135	91	40

Notes:
1. Please use 1X plane objective together when using 1.5X auxiliary objective.
2. When 0.5X or lower magnification auxiliary objective applied, track stands can not be used.

Feature accessories：

1. Objectives


PS-WP1.0	PS-W0.7

◆ 0.5X achromatic objective PS-W0.5, working distance: 186mm
◆ 0.7X achromatic objective PS-W0.7, working distance: 135mm

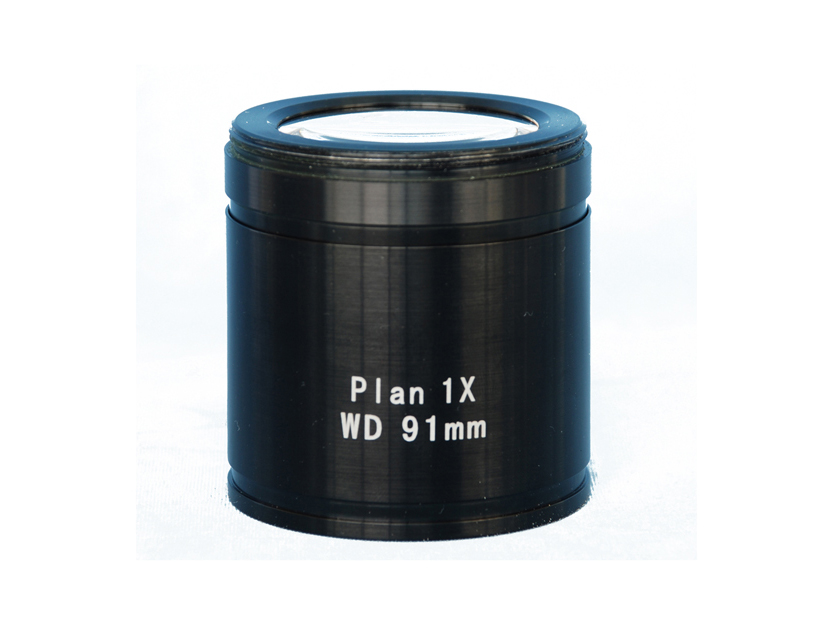

◆ 1X plane achromatic objective PS-WP1.0, working distance: 91mm
◆ 1.5X achromatic auxiliary objective PS-W1.5, working distance: 40mm.(Be used with PS-WP1.0 together)

2. Trinocular beam splitter


PS-T	PS-T1

◆ PS-T tension bar trinocular beam splitter' permeant light ratio throught the eyepiece observation: Left 100%, right 0%
◆PS-T1 trinocular beam splitter' permeant light ratio throught the eyepiece observation: Left 50%, right 50%

Optional Accessories：

	Stands	SD1~SD18
	Universal stands	U1, U2, U3, U4, U1c, U2c, U3c
	Eyepieces	WFH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	WFH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	Plane achromatic objectives	PS-W0.5, PS-W0.7, PS-WP1.0, PS-W1.5
	CCD adapters	C0.3-S、C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Auxiliary illuminators	ML01, ML02, MLR60, LGY-150Ω
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.

Notes: The track stand for MZPS0850 is different from the standard, and identified as"p", for example, if SD4 used for parallel stereo microscopes, it will be indicated as SD4P.
